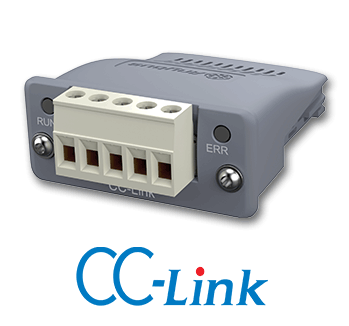

The Anybus CompactCom M40 for CC-Link is a complete communication module including connectors which enables your products to communicate on an CC-Link network.
By implementing the CompactCom concept into your product line,you will have instant access to any other industrial network by simply plugging in another Anybus module.
The M40 CC-Link module handles data lengths up to 896 bit points and 128 word points of 16 bit data and supports both CC-Link v1.10 and v2.00. The CC-link network implementation is made directly into the CompactCom network processor — the award-winning Anybus NP40. With its fast data transfer and very low latency, it's the perfect match for even the most demanding industrial applications.
| ORDER CODE | AB6602 - M40 CC-Link Module | |||
| ORDER CODE | AB6702 - M40 CC-Link Module Without Housing | |||
| ORDER CODE | SP1137 - CompactCom Host Connector (Optional accessory) |
| Dimensions (L•W•H) | 52 x 50 x 22 mm or 2,04 x 1,97 x 0,86" 51 x 37 x 16 mm or 2,01 x 1,46 x 0,63" (without housing) | |
| Operating temperature | -40 to +70 °C or -40 to +158 °F -40 to +85 °C or -40 to +185 °F (without housing) | |
| Power requirements | 3.3 VDC, +/- 0.15 VDC | |
| Application Interface | 8/16-bit parallel (30 ns access) High speed SPI, baudrate configurable up to 20 MHz I/O (shift register interface, cyclical update time 82 μs) UART (for backwards compatibility with 30-series, max 625kbps) | |
| Profile support | Generic device | |
| LED indicators | Integrated on front (with housing), via application interface (without housing). Indicates Module Status and Network Status. | |
| Fieldbus connector | See above network interface details | |
| Galvanic isolation | Yes | |
| Mechanical rating | IP20, NEMA rating 1 | |
| Mounting | PCB mounting via a customized CompactFlash connector available from HMS | |
| Certifications | CE, CULUS, RoHS |
