Características destacadas
- Economically priced passive board (no microprocessor on board)
- Extremely compact design
- Up to two CAN channels
- Galvanic isolation optional
- Common driver interface for easy exchange of the PC interface type
Descripción

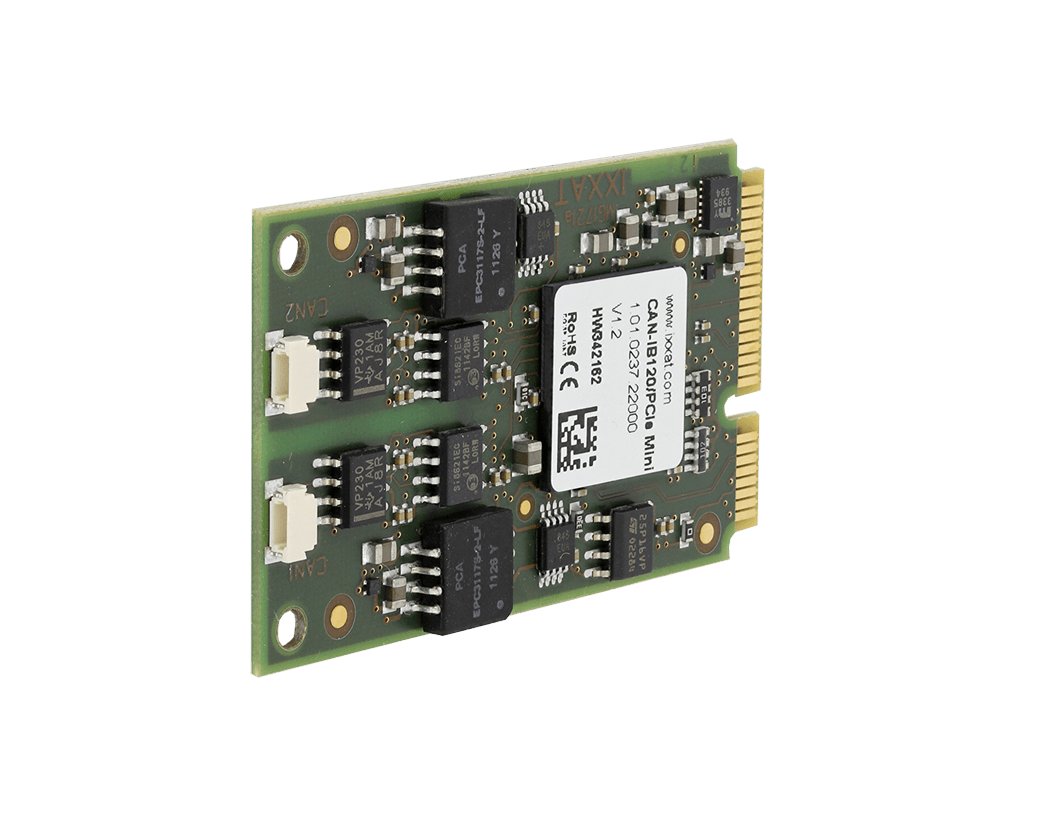

Passive PCI Express Mini board
1-2 x CAN (High-Speed)
With the CAN-IB120/PCIe Mini HMS offers an interface board specially designed for applications which require the implementation of a CAN interface with minimum space requirements.
The CAN-IB120/PCIe Mini is available with one or two optional galvanic isolated high-speed CAN interfaces.
The board is supported by the IXXAT driver packages and higher layer protocol APIs as well as by the IXXAT tool suite. A detailed software support overview can be found here.
Technical specifications
PC bus interface |
PCI Express Mini Card (V1.2)
|
PC address range |
Plug & Play
|
Interrupts |
Plug & Play
|
CAN interface |
1 or 2 CAN interfaces; CAN 2.0 A/B; galvanic isolation (1 kV, 1 sec.)
|
Power supply |
3.3 V DC
|
Temperature range |
-40 ºC ... +85 ºC
|
Certification |
CE, FCC
|
Size |
30 × 50.95 mm
|
Contents of delivery
- PC/CAN interface card, manual
- CAN connection cable open style (20 cm)
- CAN driver VCI for Windows 2000, XP, Vista, Windows 7, Windows 8
- Simple CAN monitor "miniMon"
Order number
1.01.0237.11000
|
CAN-IB120/PCIe Mini, 1 x CAN Interface High-Speed
|
1.01.0237.12000
|
CAN-IB120/PCIe Mini, 1 x CAN Interface High-Speed, Galv. Isolation
|
1.01.0237.21000
|
CAN-IB120/PCIe Mini, 2 x CAN Interface High-Speed
|
1.01.0237.22000
|
CAN-IB120/PCIe Mini, 2 x CAN Interface High-Speed, Galv. Isolation
|
