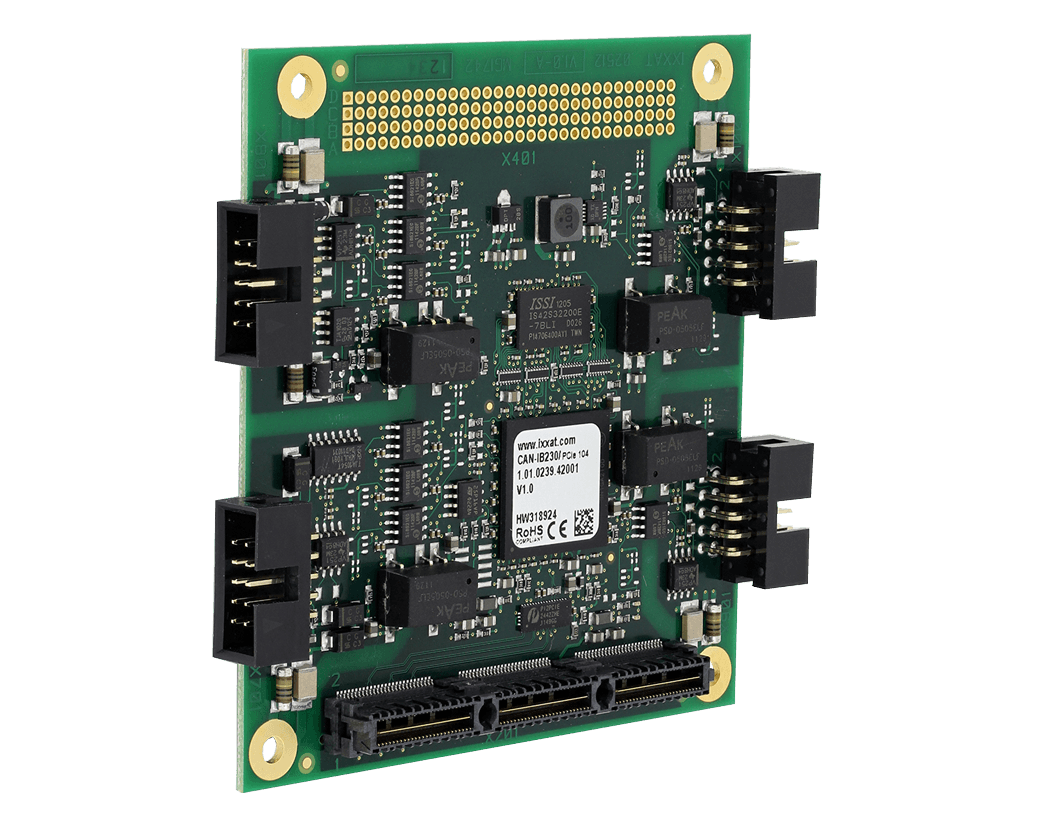

CAN-IB230/PCIe 104 Active PCI/104-Express board

Active PCI/104-Express board

2/4 x CAN (High-Speed), 1 x CAN (Low-Speed), LIN

With the CAN-IB230/PCIe 104 HMS offers a PCI/104-Express board based on a modern and highly modular concept. The card covers the entire range

Características destacadas

  • Active board with 32 bit microcontroller
  • Up to four CAN channels (High-/Low-Speed optional switchable)
  • LIN interface optional
  • Galvanic isolation
  • Common driver interface for easy exchange of the PC interface type
PC bus interface PCI express (V1.1)
PC address range Plug & Play
Interrupts Plug & Play
Microcontroller 32 bit microcontroller
CAN interface 2 or 4 CAN 2.0 A/B interfaces; bent 2 x 5 pin connector according to CiA 303-1; galvanic isolated (1 kV, 1 sec.) Optional: CAN Low-Speed (one channel can be switched via software between  CAN High-Speed and Low-Speed)
LIN interface Optional: one LIN (ISO 9141) interface; galvanic isolated
Power supply 3.3 V DC, 390 mA typ.
Temperature range -40 ºC ... +85 ºC
Certification  CE, FCC
Size Approx. 90 x 96 mm

Active PCI/104-Express board

2/4 x CAN (High-Speed), 1 x CAN (Low-Speed), LIN

With the CAN-IB230/PCIe 104 HMS offers a PCI/104-Express board based on a modern and highly modular concept. The card covers the entire range of field buses, such as CAN (ISO 11898-2), fault tolerant CAN (ISO 11898-3) and LIN.


The CAN-IB230/PCIe 104 is available with up to four CAN channels and galvanic isolated interfaces. For use in the automotive field one high-speed CAN channel can optionally be switched to low-speed CAN via software. Furthermore, the card can be equipped with one LIN interface.

The board is supported by the IXXAT driver packages and higher layer protocol APIs as well as by the IXXAT tool suite. A detailed software support overview can be found  here.

Technical specifications

PC bus interface PCI express (V1.1)
PC address range Plug & Play
Interrupts Plug & Play
Microcontroller 32 bit microcontroller
CAN interface 2 or 4 CAN 2.0 A/B interfaces; bent 2 x 5 pin connector according to CiA 303-1; galvanic isolated (1 kV, 1 sec.)
Optional: CAN Low-Speed (one channel can be switched via software between  CAN High-Speed and Low-Speed)
LIN interface Optional: one LIN (ISO 9141) interface; galvanic isolated
Power supply 3.3 V DC, 390 mA typ.
Temperature range -40 ºC ... +85 ºC
Certification  CE, FCC
Size Approx. 90 x 96 mm





Contents of delivery

  • PC/CAN interface card, manual
  • Adapter cable IDC / DSub-9
  • CAN driver VCI for Windows 2000, XP, Vista, Windows 7, Windows 8
  • Simple CAN monitor "miniMon"




Order number

1.01.0239.22000
CAN-IB230/PCIe 104; Two CAN channels with High-Speed bus
interface and galvanic isolation
1.01.0239.42001
CAN-IB230/PCIe 104; Four CAN channels with High-Speed bus interface,
one CAN Low-Speed channel (switchable via software),
one LIN channel; All channels with galvanic isolation.


Further versions on request.
