CAN-IB300/PCI
Características destacadas
- Economically priced passive board (no microprocessor on board)
- Easy expandable via field bus expansion and expansion board
- Up to four CAN channels (High-/Low-Speed optional switchable)
- Available as standard and low-profile version
- Galvanic isolation optional
- Common driver interface for easy exchange of the PC interface type
Descripción

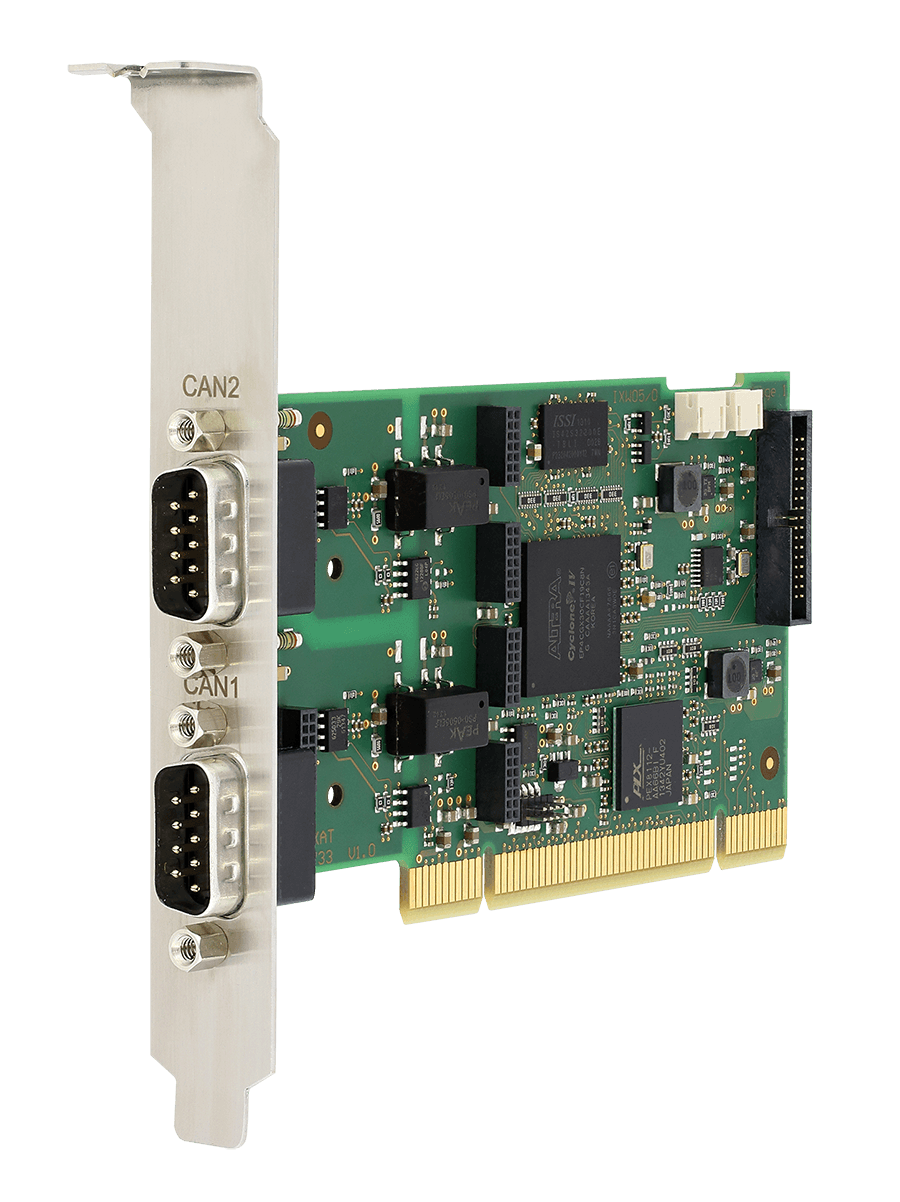

Passive PCI board
1-4 x CAN (High-/Low-Speed)
With the CAN-IB300/PCI IXXAT offers an interface board based on a modern and highly modular concept. The interface is available with a standard or a low-profile slot bracket.
The CAN-IB300/PCI is available with up to four CAN channels and can be delivered with galvanic isolated interfaces. For use in the automotive field the high-speed CAN channels can optionally be switched to low-speed CAN via software. If necessary, the number of CAN interface channels can be extended by using multiple cards within one PC.

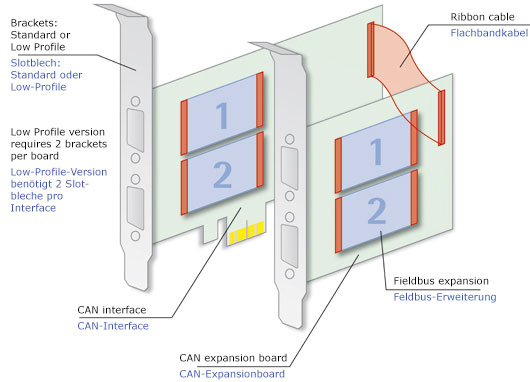

Furthermore, the modular architecture of the interface card enables the easy extension with customer specific interfaces via piggyback modules.
The board is supported by the IXXAT driver packages and higher layer protocol APIs as well as by the IXXAT tool suite. A detailed software support overview can be found here.
Technical specifications
| PC bus interface | PCI (V2.2) |
| PC address range | Plug & Play |
| Interrupts | Plug & Play |
| CAN interface | 11, 2 or 4 CAN interfaces; CAN 2.0 A/B; Sub-D9 plug according to CiA 303-1 Optional: CAN Low-Speed (switchable via software between CAN High-Speed and Low-Speed) Optional: Galvanic isolation (1 kV, 1 sec.) |
| Power supply | typ. 3.3 V DC, 100 mA / 5 V DC, 100 mA |
| Temperature range | 0 ºC ... +70 ºC |
| Certification | CE, FCC |
| Size | Approx. 65 x 120 mm (available as standard and low-profile version) |
Contents of delivery
- PC/CAN interface card, manual
- CAN driver VCI for Windows 2000, XP, Vista, Windows 7, Windows 8
- Simple CAN monitor "miniMon"
Order numbers
CAN Interface Board
| CAN HS Interfaces |
Galvanic Isolation |
Field Bus Expansion Possible |
CAN Expansion Board Possible |
MultiCAN Expansion Possible |
|
| Standard | |||||
| 1.01.0291.11000 |
1 |
||||
| 1.01.0291.12001 |
1 |
X |
1 |
||
| 1.01.0291.22001 |
2 |
X |
2 |
1.01.0240.22103 |
1.01.0242.22000 |
| Low Profile |
|||||
| 1.01.0292.12001 |
1 |
X |
1 |
||
| 1.01.0292.22001 |
2 |
X |
2 |
1.01.0240.22203 |
1.01.0240.00001 |
Further versions on request.
CAN Expansion Board (not in combination with MultiCAN expansion)
| CAN HS Interfaces |
Galvanic Isolation |
Field Bus Expansion Possible |
Compatible with CAN Interface |
|
| 1.01.0240.22103 |
2 |
X |
2 |
1.01.0291.22001 |
| 1.01.0240.22203 | 2 |
X |
2 |
1.01.0292.22001 |
Field bus Expansion (not in combination with MultiCAN expansion)
| 1.01.0241.20001 |
Field Bus Expansion, 1 x CAN Interface Low Speed, Galv. isolated |
MultiCAN expansion
| CAN HS Interfaces |
Application remarks |
Compatible with CAN Interface |
|
| 1.01.0242.22000 | 2 (Galv. iso.) |
Not in combination with CAN expansion board 1.01.0240.22103 |
1.01.0291.22001 |
| 1.01.0240.00001 |
1.01.0292.22001 |
Especificaciones Tecnicas
| PC bus interface | PCI (V2.2) |
| PC address range | Plug & Play |
| Interrupts | Plug & Play |
| CAN interface | 11, 2 or 4 CAN interfaces; CAN 2.0 A/B; Sub-D9 plug according to CiA 303-1 Optional: CAN Low-Speed (switchable via software between CAN High-Speed and Low-Speed) Optional: Galvanic isolation (1 kV, 1 sec.) |
| Power supply | typ. 3.3 V DC, 100 mA / 5 V DC, 100 mA |
| Temperature range | 0 ºC ... +70 ºC |
| Certification | CE, FCC |
| Size | Approx. 65 x 120 mm (available as standard and low-profile version) |
| Referencia | Descripcion |
|---|---|
| 1.01.0291.11000 | CAN-IB300/PCI Passive PCI board |
| 1.01.0291.12001 | CAN-IB300/PCI Passive PCI board |
| 1.01.0291.22001 | CAN-IB300/PCI Passive PCI board |
| 1.01.0292.12001 | CAN-IB300/PCI Passive PCI board |
| 1.01.0292.22001 | CAN-IB300/PCI Passive PCI board |
| Documentacion | Dsatasheet |
