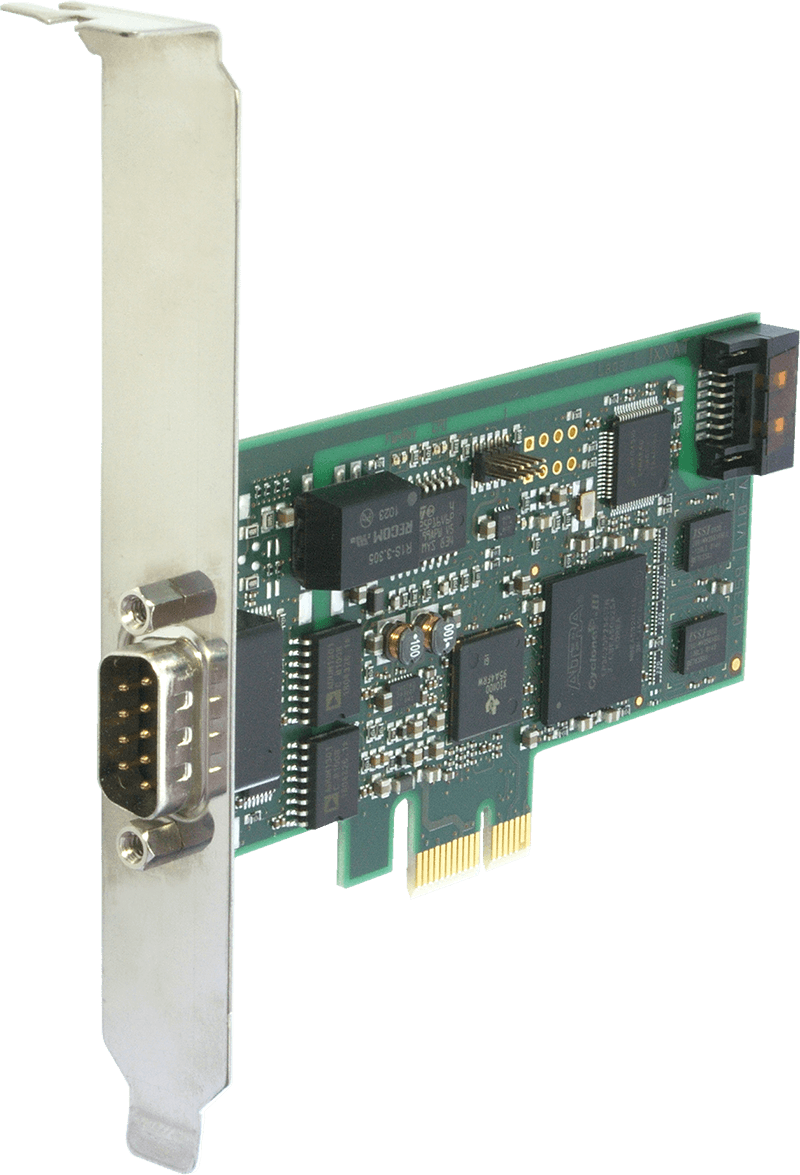

FR-IB100/PCIe
Características destacadas
- undefined
Descripción
Cost effective FlexRay PCIexpress card for
analysis and control applications
Performance highlights
- Reception of 100% bus load on FlexRay Channel A or B
- Transmission of 2000 messages per second (32 byte payload)
- Time-stamping of all messages with a resolution of 100 ns
How it works
The FR-IB100/PCIe can be used in desktop PCs at laboratory workstations as well as in industrial computer systems, e.g. at test benches, and, due to the compact design, can also be installed in low profile cases.
With the supplied drivers for Windows XP, Vista and Windows 7 (each 32/64 bit) customer-specific applications can be programmed using C++ or .NET. At this, example applications in C++ and C # enable an easy and fast start.
For users upgrading from CAN to FlexRay, a FlexRay configuration tool is included in the scope of delivery enabling an easy control of the large number of FlexRay communication parameters. After entering a few parameters, such as cycle time, number of messages and length, the tool automatically calculates the dependent parameters and creates a file to configure the FlexRay protocol chips.
Users who have a FIBEX file of the FlexRay network can directly configure the card by using the configuration data from the FIBEX file.
Due to the good price-performance ratio, the FR-IB100/PCIe is suitable for production use and, by the comprehensive software support, best suited for the analysis of FlexRay systems.
Technical specifications
| PC bus interface | PCIe (r1.1), x1 link (2,5 Gbps per direction) |
| PC address range | Plug & Play, 3 memory regions (8 kB, 32 kB, 2 MB) |
| Interrupts | Plug & Play |
| Microcontroller | 32 bit microcontroller |
| Memory | 1 MByte |
| FlexRay interface | 2 x 10 MBit/s, galvanic decoupled |
| FlexRay protocol chip | MFR4310 protocol chip |
| Power Supply | 3.3 V DC, 400 mA typ. |
| Temperature range | 0 °C ... +70 °C |
| Certification | CE, FCC |
| Dimensions | approx. 106 mm x 58 mm |
Contents of delivery
- FR-IB100/PCIe
- Drivers for Windows XP, Vista and Windows 7
- Manual
Order number
| 1.01.0103.00000 | FR-IB100/PCIe - Standard slot bracket |
| on request | FR-IB100/PCIe - Low Profile slot bracket |
Related products
Especificaciones Tecnicas
| PC bus interface | PCIe (r1.1), x1 link (2,5 Gbps per direction) |
| PC address range | Plug & Play, 3 memory regions (8 kB, 32 kB, 2 MB) |
| Interrupts | Plug & Play |
| Microcontroller | 32 bit microcontroller |
| Memory | 1 MByte |
| FlexRay interface | 2 x 10 MBit/s, galvanic decoupled |
| FlexRay protocol chip | MFR4310 protocol chip |
| Power Supply | 3.3 V DC, 400 mA typ. |
| Temperature range | 0 °C ... +70 °C |
| Certification | CE, FCC |
| Dimensions | approx. 106 mm x 58 mm |
| Referencia | Descripcion |
|---|---|
| 1.01.0103.00000 | FR-IB100/PCIe |
