NB1810-L4E-G
Industrial Router with LTE + GbE + SFP + 4x GbE + GNSS, High-performance and modular mobile router with Gigabit Ethernet and fiber ports to connect remote locations.
NB1810-L4E-G
Características destacadas
- Mobile / Cellular: 1x LTE, UMTS, GSM
- SIM: 2x Micro SIM
- Ethernet: 4x Gigabit Ethernet (4-Port Switch), 1x SFP/Gigabit Ethernet Combo, 1x Gigabit Ethernet
- Extended Storage: 1x SD Card
- Serial / Fieldbus: 1x RS-232/485
- Positioning: Multi-GNSS
- Operation Temperature: -40 °C to +70 °C
- Software: Routing, Network Services, VPN, Firewall, Link Management, Supervisor, SDK, free updates
- Compliance: CE (RED)
- Modularity: Extensions on request
Descripción
The NB1810 is a powerful and robust cellular router designed for use in industrial environments. The router is equipped with an LTE Advanced module. It also has a Gigabit Ethernet port and an SFP/GbE combo port, which can be used for fiber or Ethernet, an USB host port and a serial interface with RS-232 or RS-485 mode. The special highlight is the integrated 4-port Gigabit Ethernet switch.
DIN rail mounting, the wide operating temperature range and the IP40 metal housing allow reliable operation under harsh conditions. With its approvals, versatile features and performance, it is the ideal device for applications such as Condition Monitoring, Industrial Security, Smart Grid and Factory Automation.
The software is based on well proven components including an embedded Linux operating system and a powerful communication protocol suite as well as VPN technologies as OpenVPN. Customer specific software extensions may be implemented via a sophisticated SDK.
Especificaciones Tecnicas
Mobile / Cellular
Standard
1 x Multimode LTE, UMTS, GSM for EMEA
4G – LTE
B1 (2100), B3 (1800), B5 (850), B7 (2600), B8 (900), B20 (800)
3G - DC-HSPA+/UMTS
B1 (2100), B2 (1900), B5 (850), B8 (900)
2G - GSM/GPRS/EDGE
B2 (1900), B3 (1800), B5 (850), B8 (900)
Category
LTE Cat 4
Antenna ports
2x2 MIMO
Datarate down / up (max)
150 Mbps / 50 Mbps
Voice
CSFB
FCC ID
XPYTOBYL210
Region
Europe, Middle East and Africa (EMEA)

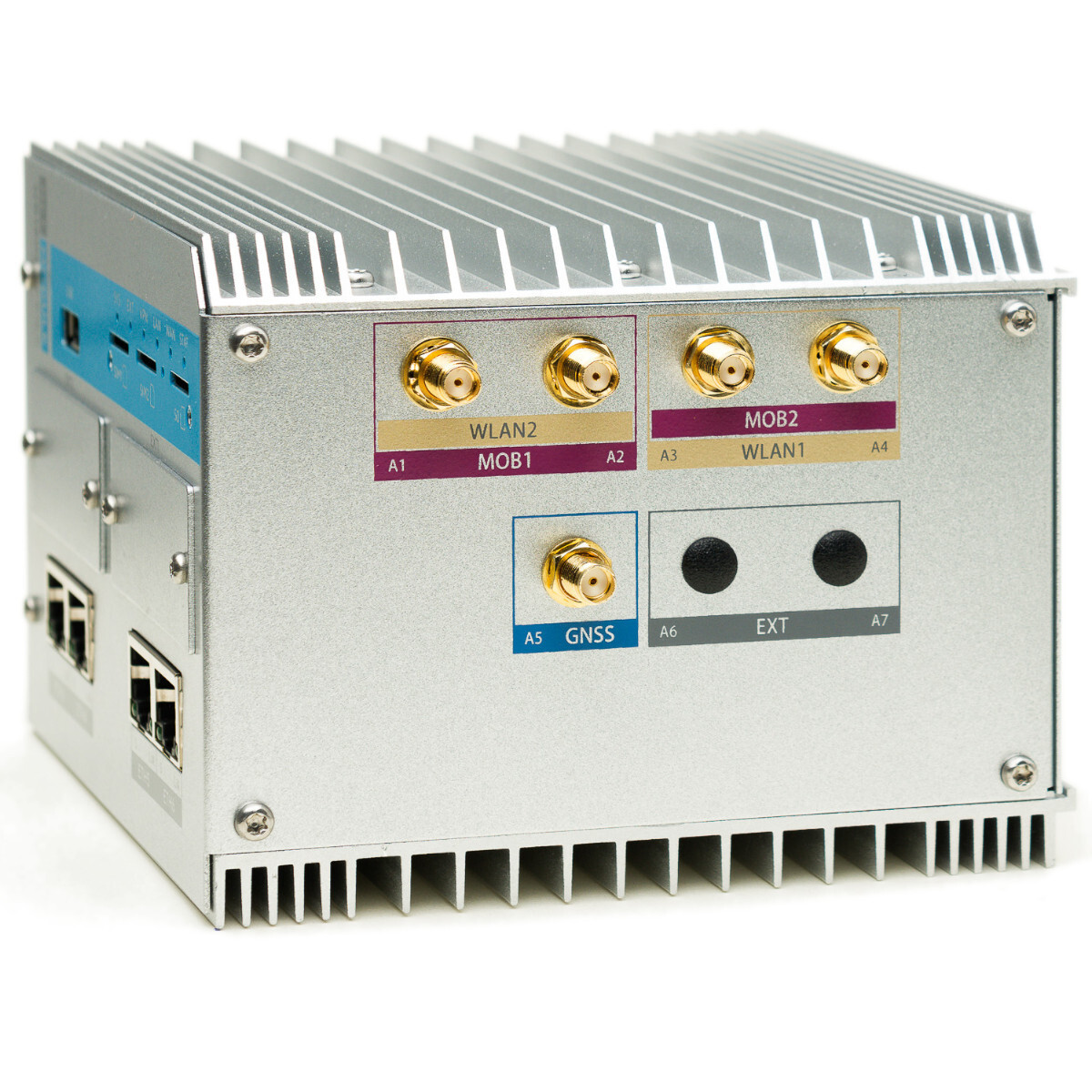

Connectors
2 x SMA female
SIM
2 x Micro SIM - 3FF
Ethernet
Standard
1 x Gigabit Ethernet
Ethernet standard
1000BASE-T, Auto MDIX
Speed
10/100/1000 Mbps

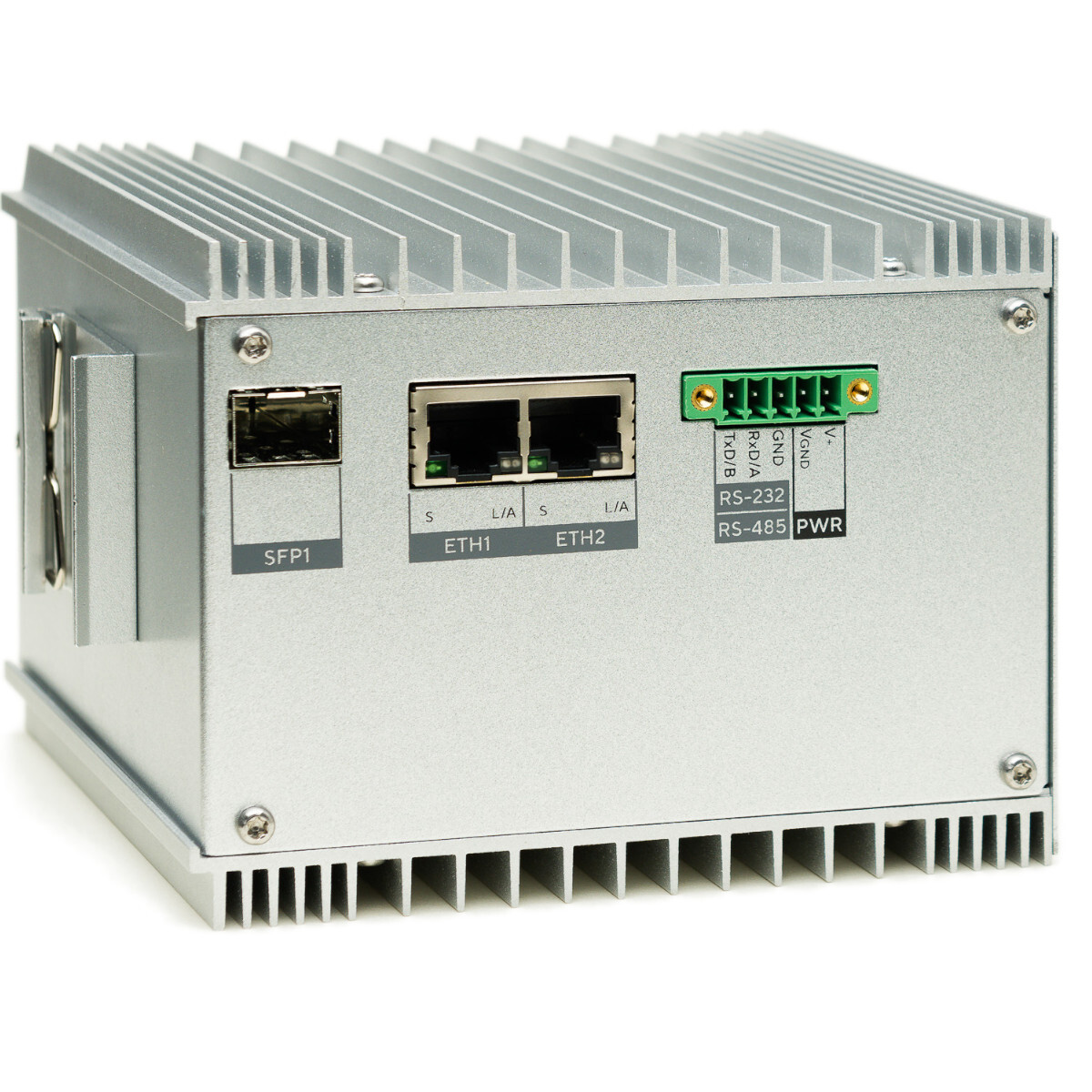

1 x Gigabit Ethernet / SFP combo (software switchable)
Ethernet standard
1000BASE-T, Auto MDIX
SFP standard
Depending on module, ask for supported modules
Speed
10/100/1000 Mbps
Combo port
SFP or GbE interface activated (software switchable)

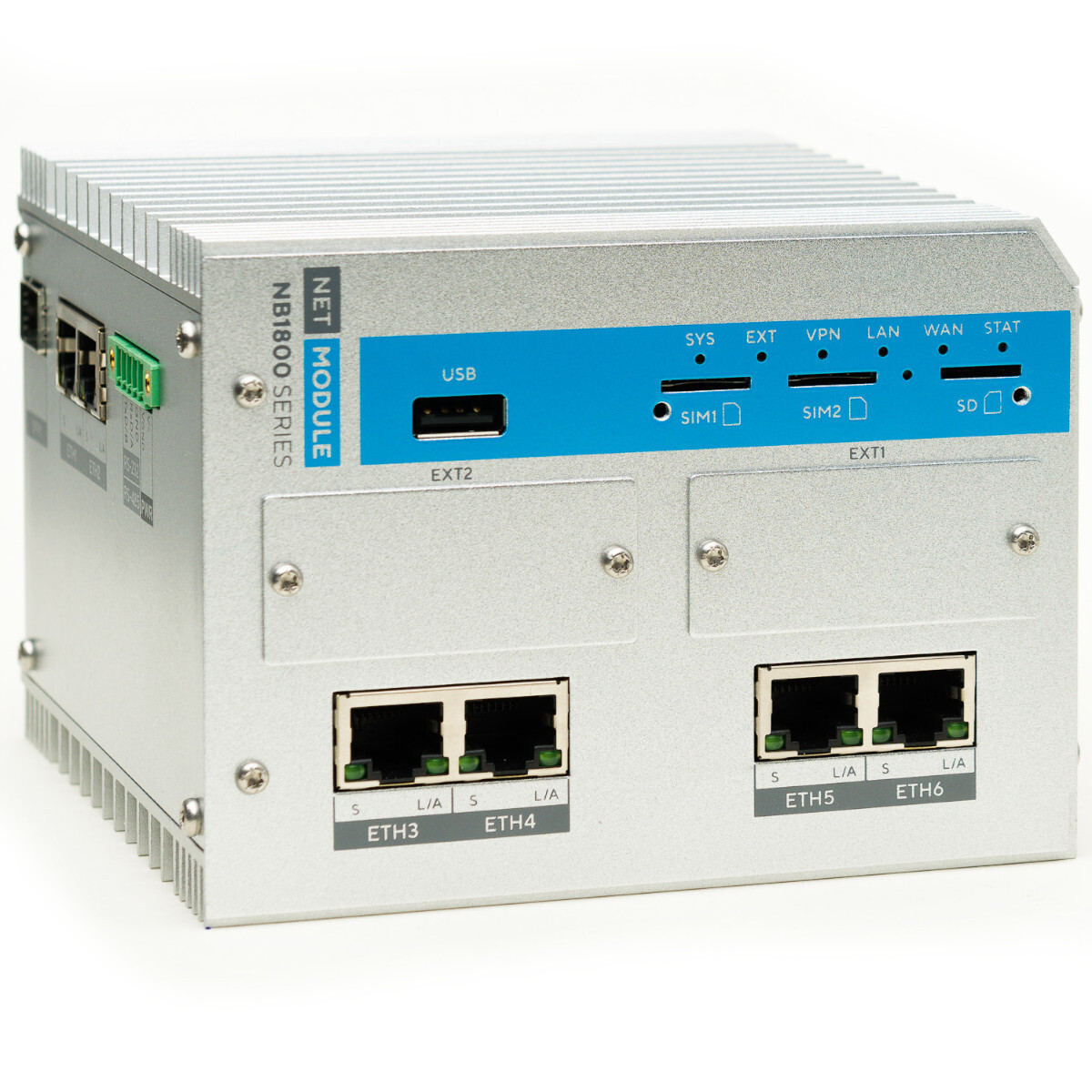

4 x Gigabit Ethernet
Ethernet standard
1000BASE-T, Auto MDIX
Speed
10/100/1000 Mbps
Connector
2 x RJ45
1 x RJ45
4 x RJ45
Positioning
Standard
Receiver
BeiDou, Galileo, GLONASS, GPS/QZSS
72-channel u-blox M8 engine
3 concurrent GNSS channels
Antennas
Active or passive
Accuracy
Up to 2.5 m CEP
Sensitivity
Up to –167 dBm
Services
Standalone, Assisted GPS
Data server with JSON, NMEA data stream
Connector
1 x SMA female
USB
Standard
1 x USB 2.0 Host
Connector
1 x Type A
Serial, Fieldbus
Protocol
1 x RS-232/485 combo (software switchable)
Protocol
EIA-232
Signals
TX, RX
Signal level
High > 5 VDC, low < -5 VDC
Bit rate
Up to 1 Mbps
Protocol
EIA-485
Signals
A, B
Signal level
Differential output voltage, loaded 1.5 VDC – 3.6 VDC
Bit rate
Up to 1 Mbps
Termination
120 Ω for RS-485 configurable by software
Connector
1 x Terminal block header 3.5 mm (screw locking)
System
Core
Module Slots
2 x miniPCIe (PCIe + USB)
2 x Extension (USB)
Extended Storage
SD Card
Slot type
microSD
Speed (read / write)
600 kByte / s
Application
Store user and logging data of SDK or LXC applications
SD card not included
Software
Features
NetModule Router Software
Package
The standard software package includes an intuitive user interface, covering all modern routing protocols and enables efficient mass deployment.
General
Fail-safe update (FOTA), upgrade via USB, HTTP(S), (S)FTP or TFTP, remote CLI & WebGUI, RADIUS authentication, Simple Certificate Enrollment Protocol (SCEP), logging
Remote Management
Manage and monitor devices with SNMP, telnet, SSH, or HTTP/HTTPS
Cellular Networking
Multi-SIM / soft-SIM support, multi-APN support, signal strength monitoring, dedicated bearers, GSM/CSFB calls
Wireless LAN
Client or Access Point mode, multi client support, multi / hidden SSID, WPA-PSK/WPA2-PSK, WPA-RADIUS, WPA-EAP-TLS, IEEE 802.11w, RADIUS accounting, CAPWAP
Link Management
Link prioritisation, link aggregation, load balancing, multipath-TCP, IP-passthrough, link supervision
Network Services
DHCP Client, DNS server, email, SMS service, NTP Client, NTP server, DynDNS, SSH server, SNMP agent, HTTP/HTTPS/FTP server, voice gateway, SIP call routing, coovachilli hotspot
Routing
Destination, policy, multipath, mobile-IP, OSPF, BGP, TCP-MSS clamping, STP/RSTP, bridging, LLDP, CDP, SONMP, EDP, FDP, IRDP, VRRP, VLAN, PPPoE
VPN
OpenVPN, IPsec, PPTP, GRE, CSD dial-in
Firewall
Stateful firewall, connection tracking, NAPT, masquerading, bridge filtering
Licenses
GNSS
Enabled service
GNSS location service
Server with JSON-, NMEA stream
Power
Input Voltage
12, 24, 48 VDC
Nominal voltages
12, 24, 48 VDC
Absolute voltages
12 VDC to 48 VDC (-25 % /+10 %)
Connector
1 x Terminal block header 3.5 mm (screw locking)
Consumption
Other
Mounting
DIN-Rail
Dimensions
Weight
Environment
Operating Temperature
-40°C to +70°C
Ingress Protection Level
IP40
MTBF
Order Code
Certifications
Compliance
Domain
| Referencia | Descripcion |
|---|---|
| NB1810-L4E-G | Industrial Router with LTE + GbE + SFP + 4x GbE + GNSS |
