Características destacadas
- Atom D425 1.8GHz fanless
- 2GB DDR3
- 2x GbE LAN / 4x USB 2.0 / Audio
- 3x RS232, 1x RS232/422/485
- 1x VGA
- Operating temperature: -5°C - 55°C
- external CF socket / HDD Space / SATA DOM
- miniPCIe Socket + SIM
- Power Input 12V
Descripción

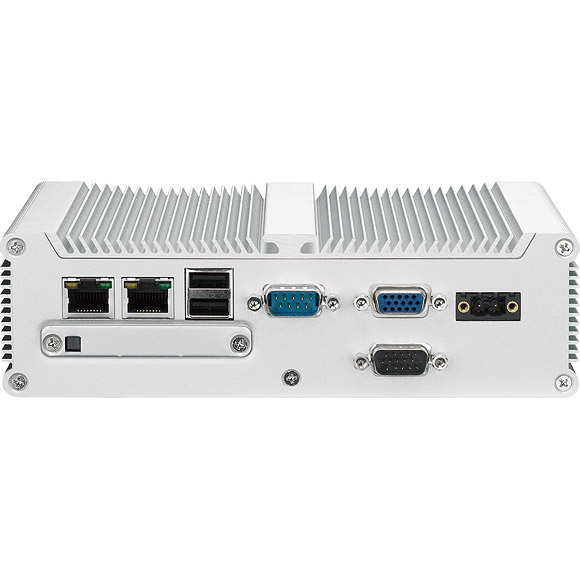

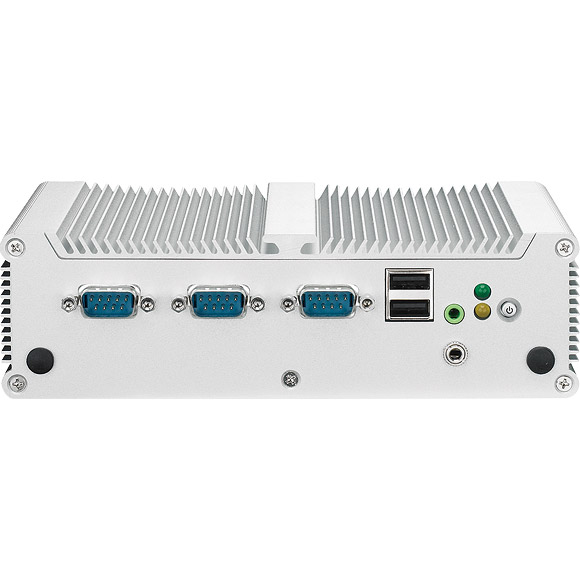

Designed with Intel® D425 1.8 GHZ processor and ICH8M embedded chipset and 12VDC input to take a low power consumption advantage,TaskRunner 103 is a compact fanless industrial computing housed in a size of 185mm x 131mm x 54mm. The TaskRunner 103 supports three RS232, one RS232/422/485, two 10/100/1000 LAN port, four USB ports, one digital I/O, one VGA display, audio jack (speaker-out, Mic-in) and one external CF card socket. It is also a wireless-ready platform which has Mini-PCIe socket and SIM card holder onBoard to support optional GSM wireless module or Wi-Fi module (default). TaskRunner 103 has a digital I/O port which offers 8X isolated digital input/output channels.
With isolation protection of 2,500VDC, and dry contact support, TaskRunner 103 can be applied to industrial and building automation applications. With rich IO connection in palm-sized system, TaskRunner 103 is an ideal fanless system for gate control, public information, self-service system, POS, Kiosk, low-power budget devices, and transportation applications etc..
| Part number | 3612TaskRunner 103 (NISE 103) |
