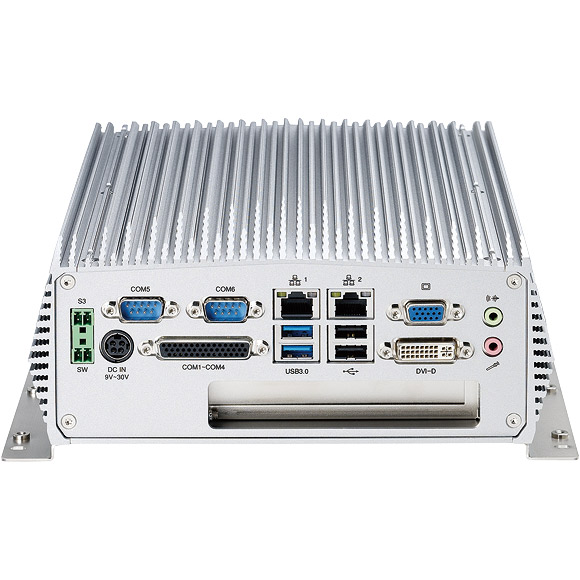

TaskRunner 3600E <dfn>(NISE 3600E)</dfn>

TaskRunner 3600E <dfn>(NISE 3600E)</dfn>

3636 TaskRunner 3600E (NISE 3600E) (one PCIex4 expansion slot) (NISE 3600E)
Categorías: PCs Industriales

Características destacadas

  • Intel Core i7 3.2GHz fanless design
  • Intel QM77 Chipset
  • 4GB DDR3 Memory
  • 2x GigaLAN / 4x USB 3.0 / 2x USB 2.0
  • DVI-D or VGA + 2x Display port
  • 5x RS232, 1x RS232/422/485
  • HDD Space
  • external CFast socket
  • PCIex4 Expansion Slot
  • Power Input 9V-30V


Utilizing 22nm Intel® Core™ i7 processor, TaskRunner 3600E (NISE 3600E) series fanless computer features Intel® Turbo Boost and Intel® Hyper-Threading technologies (4 cores, 4 threads), as well as on-processor graphics and two DDR3 1333/1600 memory modules up to 8GB. In addition, TaskRunner 3600E fanless PC provides a wide variety of display I/O configurations and rich I/O interfaces including two Intel® GbE Ethernet ports, 6x COM ports, 6x USB, SATAII and audio interfaces.
TaskRunner 3600E (NISE 3600E) fanless PC is designed for a broad range of applications which demand intense graphics performance, data storage, industrial automation, public infotainment, surveillance security applications.

Part number3636 TaskRunner 3600E (NISE 3600E) (one PCIex4 expansion slot)

Especificaciones Tecnicas

CPU Intel Core i7-3632QM Processor(6M cache, 3.2GHz)
Chipset: Intel QM77 PCHresolution up to 2048x1536
Memory 4GB DDR3 1333/1600MHz (8GB max.)2x 204-pin SO-DIMM
I/O Interface Front 2x USB3.0 ports2x Display PortCFast socket2x antenna holesATX power on/off switchHDD access/power/LAN status LEDs
I/O Interface Rear 2x GbE LAN ports (Intel Chipset)2x USB 3.0 ports2x USB 2.0 ports1x DB15 VGA port1x DVI-D port1x DB44 serial port for 4x RS232 (COM2: RS232/422/485)2x DB9 serial port RS2321x speaker-out1x mic-in9-30V DC power input2-pin remote power on/off switch
HDD/SSD 1x 2.5" SATA HDD drive bay(TaskRunner 3600E)2x 2.5" SATA HDD drive bay(TaskRunner 3600E2, 3600P2E, 3600P2)
Flash 1x exernal CFast socket
Construction Aluminium chassis with fanless design

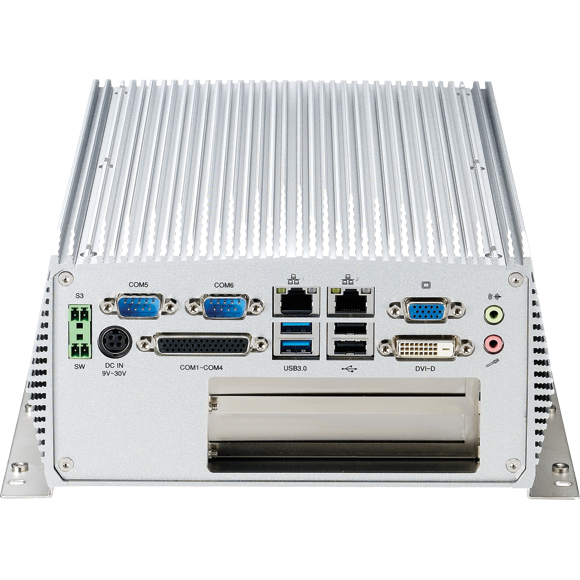

Expansion slot 1x PCIex4 (TaskRunner 3600E)2x PCIex4 (TaskRunner 3600E2)1x PCIex4 + 1xPCI (TaskRunner 3600P2E)2x PCI (TaskRunner 3600P2)
Dimensions 215x 272x 93mm (TaskRunner 3600E)215x 272x 114mm (TaskRunner 3600E2, 3600P2E, 3600P2)
Power Requirements
DC 9V - 30V DC on-board power support
AC Optional 19V, 120W external power adapter
Operating Temp. −5°C - 55°C
Storage Temp. −20°C – 80°C

Referencia Descripcion
3636 3636 TaskRunner 3600E (NISE 3600E) (one PCIex4 expansion slot) (NISE 3600E)
