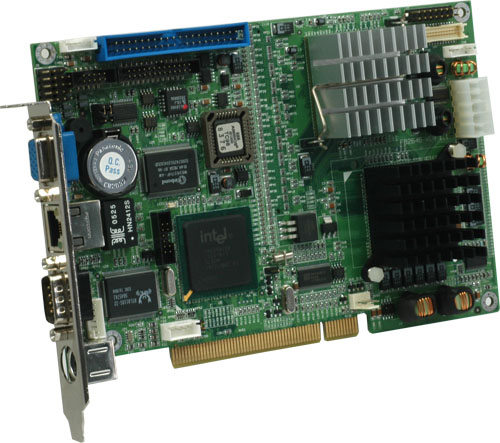

VS-2646A

Características destacadas

  • Intel Pentium-M 1.6GHz fanless
  • one SoDIMM socket supporting up to 1GB
  • Onboard Intel 855GME chipset, CRT
  • 2 x IDE, 1 x CF socket
  • 10/100/1000Mbps LAN Onboard
  • Built-in 4 x USB ports with two 10-pin header

Descripción

A wide range of PCI Single Board designed to meet the high performance, applied computing requirements today! Fan less

Part Number3011

Especificaciones Tecnicas

Hardware Specifications
CPU Intel Pentium-M 1.6GHz
Chipset Intel 855GME + ICH4
VGA Chipset integrated
Bus Interface PCI Bus
Memory one SoDIMM socket supports up to 1GB max.
BIOS AMI Flash BIOS, incl. VGA/LCD and LAN boot-ROM
IDE Interface 2 PCI IDE, one 40-pin
LAN Realtek RTL8110s Chipset 10/100/1000Mbps, Base-Tx Ethernet with Rj-45 connector onboard
Serial Port 1 x RS232, 1 x RS232/422/485 serial port
Parallel Port Supports one parallel port SPP/EPP/ECP
USB 4 x USB ports with 10-pin header
Socket one socket for Compact Flash
Keyboard/Mouse 6-pin 2.0mm JST connector6-pin Mini DIN connector PS/2 for Keyboard or Mouse
Watchdog Programmable watchdog timer
Power Req. +5V 4,2A and +12V 0.1A
H/W monitoring supports CPU/Chassis temperature, Main/Aux.powers and CPU Chassis cooling fan
Operating Temp. 0 to 45 celsius degree (149 degree F.)
Storage Temperature -25 to 80 celsius degree
Cache internal 1MB L2 Cache, Integrated in the CPU
Dimensions 185 mm x 122 mm

Referencia Descripcion
3011 3011
Documentacion VS-2646A Datasheet
