VS-EVB-AM335x

Características destacadas

  • Developer board for VS-SOM-AM335x
  • 1 x SD-Slot
  • 5 x LAN
  • 3 x USB 2.0 (2 Host, 1 OTG)
  • 2 x RS232/422/485
  • 1 x CAN Bus
  • 8 x Digital-I/O (4 Input, 4 Output)
  • 1 x I²C
  • 1 x mPCIe-slot for 3G/4G-Modem, GPS and other
  • 1 x SIM card slot
  • 1 x Console serial Port
  • Debian GNU/Linux

Descripción

The Developer Board VS-EVB-AM335x is an example for use of VS-SOM-AM335x System-On-Module. This Developer Board realizes the interfaces as named in the standard configuration of VS-SOM-AM335x. It has the connectors and necessary interface circuits to make the interfaces usable.
Plug in the module to get a system. The module is not included.

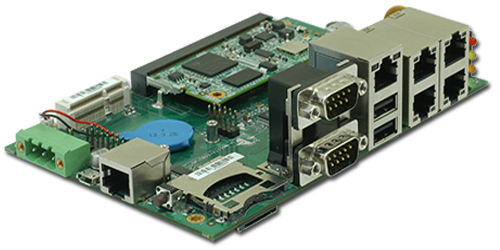

6836OnRISC VS-EVB-AM335x
Packing list

OnRISC VS-EVB-AM335x Carry Board

Especificaciones Tecnicas

Interfaces
Fast Ethernet integrated switch with four external ports for 10/100 Mbit/s
Gigabit Ethernet AR8035
USB Host 2 x High Speed by USB 2.0 Hub
USB OTG 1 port
Serial UART 2 x DB9 for RS232/422/485
SD-Card 1 slot for boot
Console 1 x RS232 on RJ45 connector
CAN Bus CAN 2.0A/2.0B High Speed 1 Mbit/s
Digital-I/O 4 x Input4 x Output
Expansion
Slot miniPCIe 1 slot for Mini PCI Express cards
SIM Slot Controlled by mPCIe slot, for GSM/3G/4G modems
Power Supply 12V – 30V DC

Referencia Descripcion
6836 OnRISC VS-EVB-AM335x
