VS Multi-Media Panel PC 21.5"

Características destacadas

  • 21.5" LCD TFT
  • Resolution 1920x1080 full HD
  • with touchscreen
  • CPU Atom D525, 1.8GHz
  • 2GB DDR3
  • 2x Intel Gigabit LAN
  • 2x RS232/422/485
  • 4x USB 2.0
  • 12-30V DC


This multimedia Panel PC, powered by the high performance Intel Atom D525 processor, enables simultaneous running of rich stream dynamic multimedia content. The 21.5" 16:9 LCD size offer full HD resolutions up to 1920x1080. The very slim design and the possibility of panel and VESA mounting enables installation at almost every location. Offering features like dual Intel Gigabit LAN, two COM-Ports, four USB2.0 ports and optional WLAN module, this Panel PC is the perfect solution for self service, kiosk and interactive digital signage players.

Part number267

Especificaciones Tecnicas

Display Size 21.5" 16:9
Resolution Full HD, 1920x1080
Luminance 300cd/m2
Contrast ratio 1000
Backlight CCFL
Touch screen 5-wire resistive on USB
Processor Intel Atom D525, 1.8GHz
Chipset Intel ICH8M
Memory 1GB DDR3 800MHz (2GB max.)1x 204-pin SO-DIMM
Flash one external CF socket supports Type I/II compact Flash card
HDD/SSD 1x 2.5" SATA HDD drive bay
Expansion 2 x miniPCIe
LAN 2x Gigabit LAN with RJ45, Intel 82574L Chipset
USB 4x USB 2.0
COM Ports 2x DSUB 9 male
COM Port Modi RS232/422/485
VGA 2nd VGA display port DB15
Audio Line out (AC97 codec)Line inMIC-in2x Speakers 2W
Keyboard/Mouse PS2 connector
Power and Environment
Mounting Panel, wall, stand,VESA 75x75, 100x100 and 400x100mmPanel mounting kit optional
Power input 12V–30V DC
Power adapter optional AC power adapter 12V, 60W
Operating Temp. 0°C - 45°C
Storage Temp. -20°C – 75°C

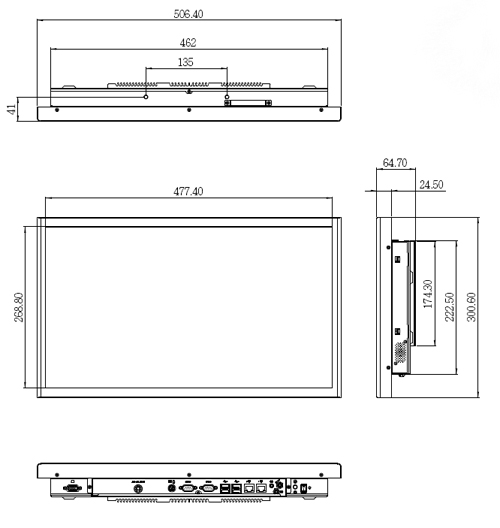

Dimensions 506 x 300 x 65mm

Referencia Descripcion
267 267
