VS-SOM-AM335x

Características destacadas

  • System-On-Module
  • Small SODIMM form factor (68 × 38mm)
  • AM335x ARM Cortex-A8 RISC @ 600-1000MHz
  • 256MB DDR3
  • 256MB NAND Flash for boot
  • 2 x LAN
  • 2 x USB 2.0
  • 3 x UART
  • 1 x CAN Bus
  • 1 x I²C
  • 40 x GPIO
  • 8 x ADC
  • ID-EEPROM, RTC
  • Optional Wifi
  • 5V@750mA with Wifi
  • Debian GNU/Linux Kernel 3.18

Descripción

The VS-SOM-AM335x is a System-On-Module, in small SODIMM form factor. It features Texas Instruments Sitara AM335x ARM Cortex-A8 32-bit RISC processors. This is accompanied by DDR3 and NAND Flash memory, plus EEPROM and optional WLAN b/g/n. The processor provides a complete CPU infrastructure, with very flexible configurations for highly integrated systems. The AM335x processor integrates a NEON SIMD coprocessor. This combination supports operating systems like Linux and Windows EC.

As an SOC the processor/MPU has many interface options, multiplexed on the connection pins. This results in a lot of available functions, not all usable in the same configuration. Therefore the specifications below name the number of functions in a typical configuration, as well as the maximum number usable in special setups.
Customers get support in developing their own carrier board for the target application.

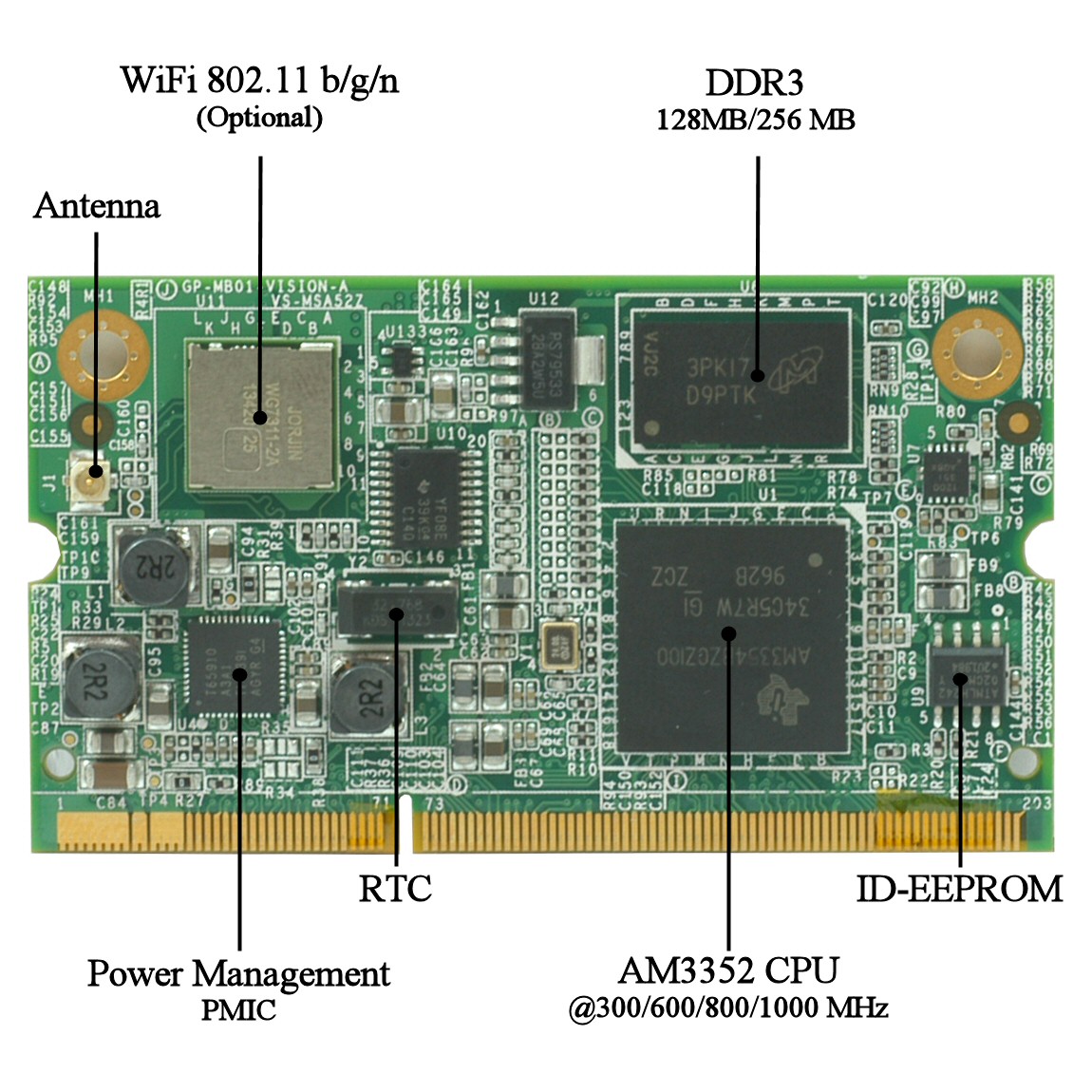

6834VS-SOM-AM335x without WLAN

Especificaciones Tecnicas

Core Components
Processor Ti Sitara AM3352 Cortex-A8 ARM RISC CPU @ 600MHzOption 300 / 800 / 1000 MHzOption AM335x RISC CPU variantsNEON SIMD Coprocessor
Memory 256MB DDR3 (Option 128MB)256MB NAND Flash2kbit ID-EEPROM
Boot NAND Flash Memory(Micro)SD-card on MMC channel
Time Real Time ClockWatchdog Timer
Encryption AES hardware encryptionRNG hardware for random
WLAN Optional IEEE 802.11b/g/n
Connector SODIMM-204 104 digital signals to/from MPU8 analog signals to MPUPower supply +5V and RTC BatteryAux power out
Interfaces (typical / max)
Gigabit Ethernet 1 / 1 x 10/100/1000 RGMII
Fast Ethernet 1 / 1 x 10/100 RMII
SDIO / MMC 1 / 2 ports
USB 2 / 2 x USB 2.0, OTG function possible
Audio 0 / 2 Ports for In and Out
CAN Bus 1 / 2 CAN 2.0A/2.0B High Speed 1Mbit/s
SPI 0 / 1 Port
I²C 1 / 3 Ports up to 400kHz
Serial Ports UART 3 / 6 ports, 16C750 compatible
Expansion Bus 0 / 1, 8 bit address/data multiplexed
Timer 0 / 4 timer signals
Display 0 / 1 16 bit LCD
Analog 8 / 8, four for touch interface
GPIO 40 / 104 signals from MPU
Power and Environment
Power Input 5V DC @ 750mA3V Battery for RTC backupOutput 3.3V @ 150mAOutput 1.8V @ 300mA
Temperature Operating: -10°C - 75°CStorage: -20°C - 85°CHumidity: 10-85% non-condensing
MTBF n.a.
Approvals EMC: FCC Class A, CE Class AEnvironment: RoHS
Mechanical
Dimensions 68×38×5 mm³
Software Specifications
Linux Debian GNU/Linux Kernel 3.18 for ARM buildroot is supported for Flash installation
Windows Windows Embedded Compact 7
Related Products
Part Number 6836 Development Kit

Referencia Descripcion
6834 VS-SOM-AM335x without WLAN
