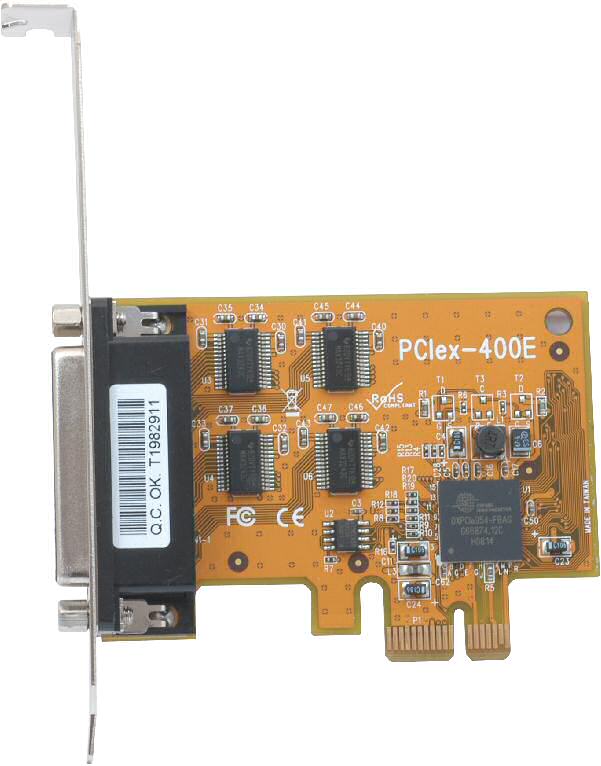

VScom 400E PCIex
Características destacadas
- PCI Express x1
- 4x RS232
- 16C950 (128 Byte FIFO)
- 921 kbps
- PCI Plug and Play
- Drivers for Windows 2000 to 7/2008R2
- Extra bracket for Low Profile cases
Descripción
The VScom 400E PCIex is an add-on card for PCI Express, providing four serial ports. These high speed serial ports with their 128 byte long FIFO are best for high speed communication, even in heavy loaded systems. Many unique features reduce the system load. They also allow very unusual speed settings such as 500.000bps.
The extra bracket allows to place the card in Low Profile cases.
Read the News Article…
Part Number | 4503 |
Especificaciones Tecnicas
Hardware Specifications | |
Ports | 4x RS232 (RxD, TxD, RTS, CTS, DTR, DSR, DCD, RI) |
UART | 4x 16C950 (128 Byte FIFO) |
Address | Plug and Play |
Interrupts | PCI Plug and Play, only one interrupt per card |
Speed | max. 921 kbps |
Bus interface | PCI Express x1 |
Connectors | 1x DB44, adapter cable 4 x DB9 male |
Low Profile | Extra bracket for alternative mounting |
Temperature | 0°C - 55°C |
High Performance Features | |
FIFO | adjustable FIFO length, 1 up to 128 Bytesseparate adjustable Rx and Tx |
Handshake | RTS / CTSDTR / DSRXon / Xoffall handshake automatic on Chip |
Speed | 1 bps up to 921 kbpsunusual Baudrates possibleMultiplication factor for legacy applications |
Access | high speed access via Memory |
UART | UART emulation of 8250 up to 16850 |
Operating Systems | |
Windows XP up to 7 | VScom high performance serial driver, x86 and x64 Editions |
Server 2003 up to 2008 R2 | VScom high performance serial driver, x86 and x64 Editions |
Linux | Kernel 2.6.35 and up: built-in support |
Referencia | Descripcion |
---|---|
4503 | 4503 |
